Vacuum Homogeneous Mixer

E-Catalog

Water, oil solution mixing tank with heating system for convenient of raw material heating and dissolving.

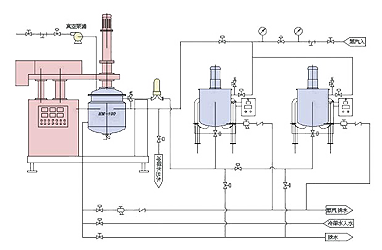

Vacuum system : the oil and water solution can be conveyed to emulsifying tank by vacuum transfer in a closed operation.
Set variables during operation : heating temperature, homogeneous speed, scrapper speed.
Automatic process : heating / emulsify / vacuum / cooling.
Oil hydraulic system : lift up the scrapper with cover for easy cleaning.
To use operator interface (process visualization) control system for the whole process automation.

Model	Total Volume (L)	Maximum Height (mm)	External Dimensions (W x L x H) mm
YS-HM-100	100	3450	750x2000x2450
YS-HM-150	150	3500	800x2100x2500
YS-HM-200	200	3600	870x2350x2600
YS-HM-250	250	3700	900x2400x2650
YS-HM-350	350	3800	930x2440x2700
YS-HM-500	500	4350	1350x2800x3000
